The SOONWELL B-192V High-Load Battery with Dual D-Tap & USB Port features a V-mount and is only 1280g but packs 192Wh of capacity to power your professional devices
The B-192V Li-ion BP Battery comes equipped with two built-in D-Taps and a single built-in USB output to power ancillary accessories,protecting your camera's electronics from potential damage due to power hungry accessories.
Designed with battery circuit protection against overcharge, over-discharge, over-current, and exposure to high temperatures, providing protection to your battery from the rigors of production.
A 5-LED battery life indicator on the side of the battery provides a quick visual indication of charge state of your battery.
The B-192V V mounting battery pack complies with IATA, ICAO, and UN regulations for air transportation without restrictions. It can sustain large power draws to easily handle digital cinema cameras, like ARRI Alexa, Amira, Epic, Sony and Phantom.
The V-mount B192-V 192Wh 14.8V Lithium-Ion Battery from SOONWELL supports up to a 6.6A draw. Use it to power select cameras, video lights, or cinema-style accessories.

This slim lithium-ion battery features a five-LED remaining power indicator plus two D-tap ports and one USB port for powering accessories.

Application: DSLR cameras, LED lights, monitors etc
Key Features:
14.8V 192Wh V-Mount Battery
Supports up to 10.2A Draw
2 x D-Tap Ports
1 x USB Port
- Application: DSLR cameras, LED lights, monitors etc
- Capacity: 10200mAh / 150Wh
- Maximum Charge Voltage: 14.8V
- Max output current: 13.2AH ,
- 14.8V 10A D-Tap output
- 6V 2A USB output
- 5-level LED charge readout
- Size:138*91*89mm
- Weight: about 1280g
Battery circuit protection ensures the B-15V is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures

D-Tap Charger:
4 Type Adapter Optional (US/Euro/UK/AU standard£
Lithium-ion battery with D-Tap port is compatible
High efficiency and low power consumption
Input Voltage: AC100-240V 50-60Hz
Charging Current: Max ¡Ü 2.5A, normal 2.0A

Input Voltage: AC100-240V 50-60Hz
Charging Voltage: DC 16.8V
Charging Current: Max 2.5A, normal 2.0A
Operating Temperature:.0-40C
Dimensions: 72 (W)mm X 152 (L)mm X 36 (D)mm
Weight: 300g




Packing List
1 x 192 Wh Li-ion BP Battery Pack V Lock
1 x User manual

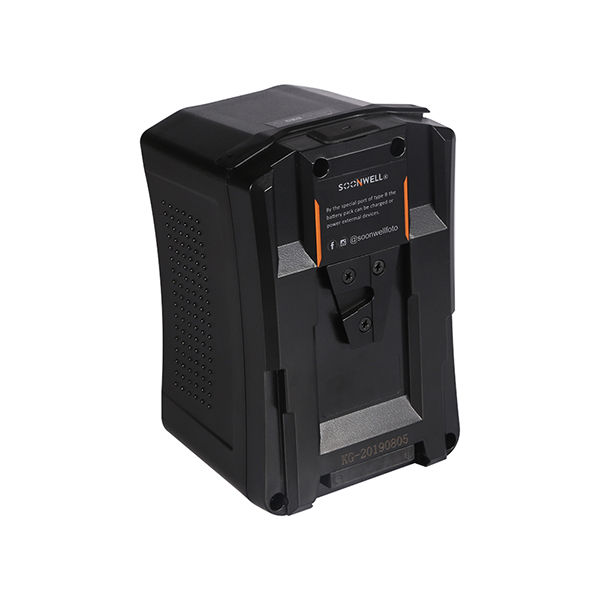

SOONWELL B-192V V Mount Battery
